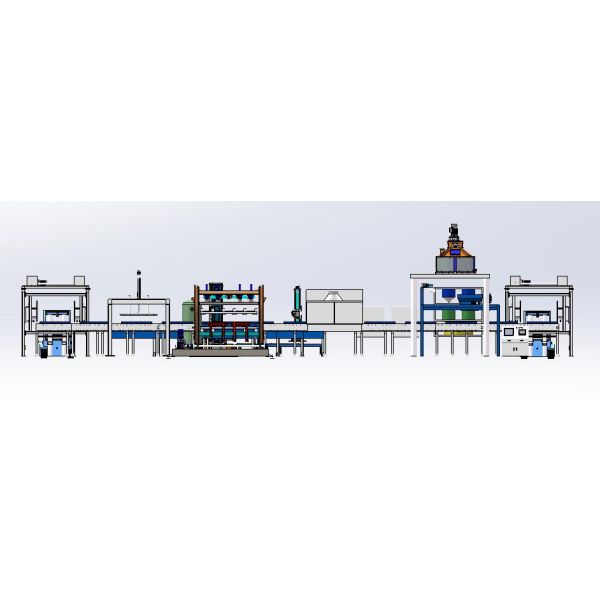

The full auto production line include cement silo, batching machine, and forced auto mixer. The cement silo need equipped with a screw feeder. To delivery cement into mixer. The batching machine have two or three hoppers. And have weighted function at bottom of each hopper. All the three machines need a PLC controller to control each function.
Then come to dosing part, spraying part. The dosing part feed material by weight and time, and equipped with conveyor and vibration point. The spraying part can remove dust and spray demold oil or spray color. The dosing part also have touch screen PLC controller.
Other parts are demold machine, unloading and loading machine, package machine, dust clearance machine, and so on. All the system can be customized according to clients requirements for cladding stone.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 | Hydraulic driving;Auto feeding; vibrating and timing feeding | 7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500
|
Applications
Wet cast machinery, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for paving tile molds, 3D wall molds, wall panel molds, roadside stone molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
- On-site technical support and maintenance
- Expert assistance with installation and setup
- Remote and telephone troubleshooting and support
- Periodic maintenance and inspection
- Repair and replacement parts
- Technical training and user manuals
- Upgrades and software updates
